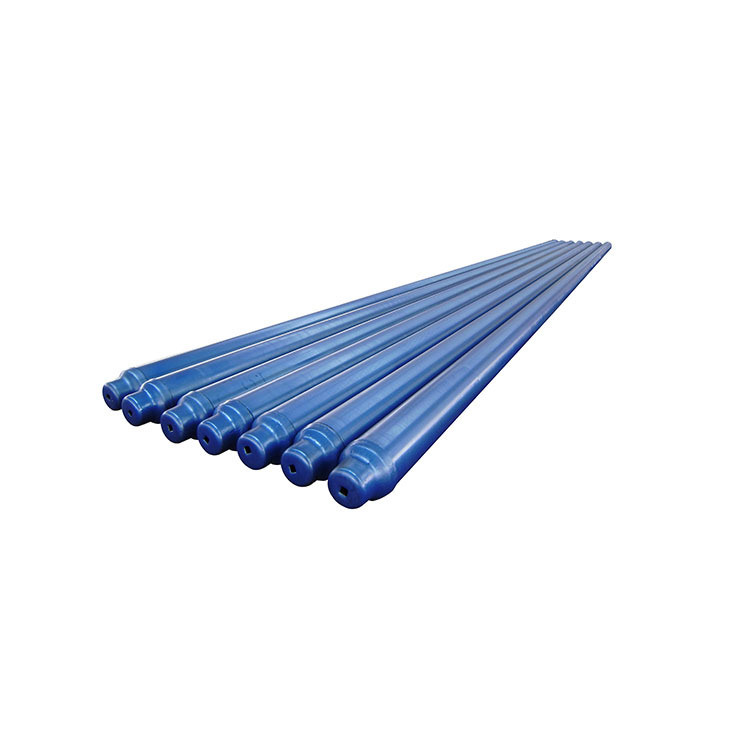

6-5/8 REG API Standard Drill Collar 9150 or 9450 mm Length

API standard drill collar

6-5/8 drill collar 9150mm

9450mm length drill collar

Marca:

SWS

contattici

Richieda una citazione

6-5/8 REG API Standard Drill Collar 9150 or 9450 mm Length

Dettagli del prodotto

Nome del prodotto:

Asta pesante

Numero e tabella di connessione:

6-5/8 REGISTRO

Diametro esterno ((inch):

8-1/4

Diametro esterno (millimetri):

209.6

Diametro interno ((inch)):

2-13/16

diametro interno (millimetri):

71,4

Lunghezza (mm):

9150 o 9450

Diametro del bisellino ((mm):

195.7

Rapporto di resistenza alla piegatura:

2.93:1

Prodotti relativi

2-13/16 Inch Inside Diameter 6-3/4 Inch Outside Diameter Drill Collar in Oil and Gas Industry

Ottenga il migliore prezzo

159.5 mm Bevel Diameter 3.18:1 Bending Strength Ratio 9150 or 9450 mm Length Drill Collar

Ottenga il migliore prezzo

NC70-100 Drill Collar with API Standard and 237.3 mm Bevel Diameter

Ottenga il migliore prezzo

3 Inch Inside Diameter Drill Collar with 232.6 mm Bevel Diameter in Oil and Gas Industry

Ottenga il migliore prezzo

contattici

86-519-83553967

Leo@service-js.com

86-519-83553967

Contatto ora

Descrizione di prodotto

COMPANY PROFILE

6-5/8 REG API Standard Drill Collar 9150 or 9450 mm Length 0

We(SWS) is a professional company engaged in the development, manufacturing, sales and service of downhole oil tools; Advanced downhole tool manufacturing technology from the U.S. and Canada is used to provide casing accessories that exceed industry quality standards to meet the challenging cementing tool needs of oilfields around the world.

To meet these demands, we have established a manufacturing facility of 78000sq ft. This facility has modern CNC machining, fabrication and processing equipment, testing and inspection facilities,together with raw material and production storage.

MAIN PRODUCTS

Our main products are: float collar and shoes, stage collars, liner hangers, Packer, cement plugs, cement heads, centralizers, casing and tubing, pup joints, coupling, etc.

6-5/8 REG API Standard Drill Collar 9150 or 9450 mm Length 1

CERTIFICATES

PRODUCT DESCRIPTION

Drill Collar is the basic component in the BHA which provides weight on the bit for drilling and keeps the drillsting in tension. Our Drill Collar has been approved by the NS-1 certification, it is manufactured from 4145H modified quenched and tempered steel, strict metallurgical specifications are followed to insure that full length heat treating produces a consistent maximum depth of hardness.

Features and Benefits

A hardness range of 285 to 341 BHN and a Charpy impact value of 40 ft-lbs are guaranteed at evenly distributed 16 points in any sections at room temperature;

Connections are completed (phosphate coated) to protect them from the elements after machining and to help prevent galling upon initial make-up;

Thread roots are cold rolled on APl and H-90 connections;

6-5/8 REG API Standard Drill Collar 9150 or 9450 mm Length 3

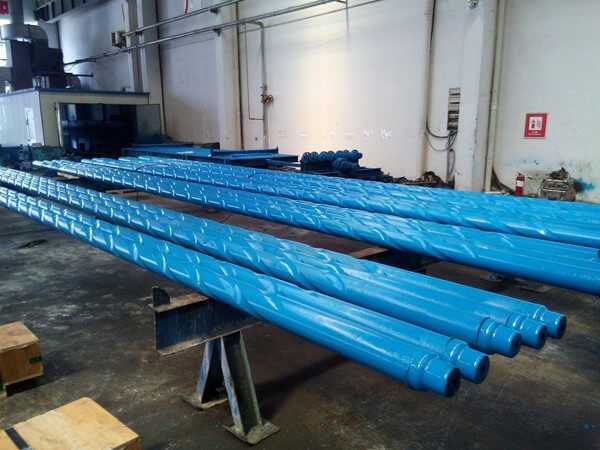

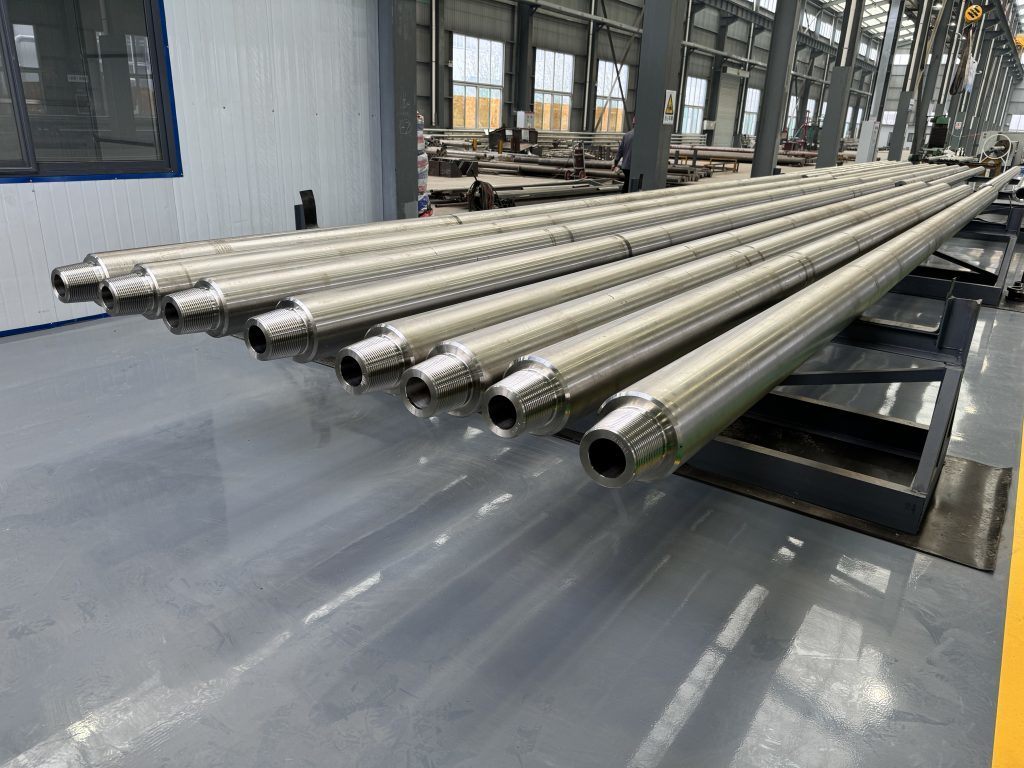

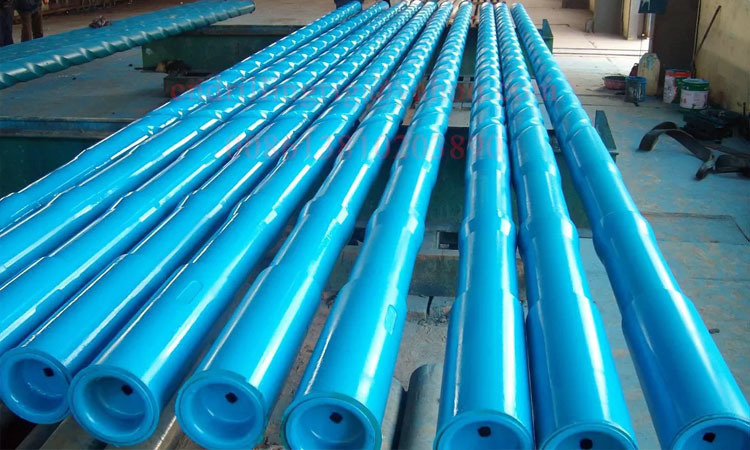

FACTORY PHOTOS
