ISO API N80 Float Shoe with Carbon Steel or 304 Stainless Steel Construction and 1 Year Warranty for Well Drilling

Carbon Steel Float Shoe

304 Stainless Steel Float Shoe

1 Year Warranty Float Shoe

Luogo di origine:

Cina

Certificazione:

API ISO

contattici

Richieda una citazione

ISO API N80 Float Shoe with Carbon Steel or 304 Stainless Steel Construction and 1 Year Warranty for Well Drilling

Dettagli del prodotto

Peso:

5 kg

Tipo di valvola:

Valvola singola e doppia

Tipo di macchina:

Strumento di perforazione

Tipo di elaborazione:

Forgiatura

Materiale:

Acciaio inossidabile acciaio al carbonio/304

Misurare:

5 1/2 ", 7", 9 5/8 ", 13 3/8"

Nod od:

6 ", 7 5/8", 10 5/8 ", 14 3/8"

Abolo ID:

4 3/4 ", 6 1/4", 8 5/8 ", 12 3/8"

Min noia:

2 ", 2 3/8"

Tipo di filo:

5 1/2 "LCSG, 7" LCSG, 9 5/8 "LCSG, 13 3/8" LCSG

Valutazione della pressione:

4351, 3626 lb/in2

Componenti principali:

Valvola

Moq:

1 set

Utilizzo:

Materiale di trivellazione del giacimento di petrolio

Industrie applicabili:

Energia e mining

Prodotti relativi

API Standard 114.3mm Float Shoe and Float Collar with 150°C and 204°C Seals for Oilfield Drilling

Ottenga il migliore prezzo

API Standard Nose Float Shoe Cementing Float Equipment with 150°C and 204°C Seals for Oilfield Drilling

Ottenga il migliore prezzo

API 5CT 7-5/8" L80 BTC/LTC Eccentric Multiple Flank Jets Aluminum Alloy Float Shoe for Cementing Tool

Ottenga il migliore prezzo

Customizable API 5CT High Pressure Double Plug Cementing Head with 35MPa Working Pressure and 1 Year Warranty

Ottenga il migliore prezzo

contattici

86-519-83553967

Leo@service-js.com

86-519-83553967

Contatto ora

Descrizione di prodotto

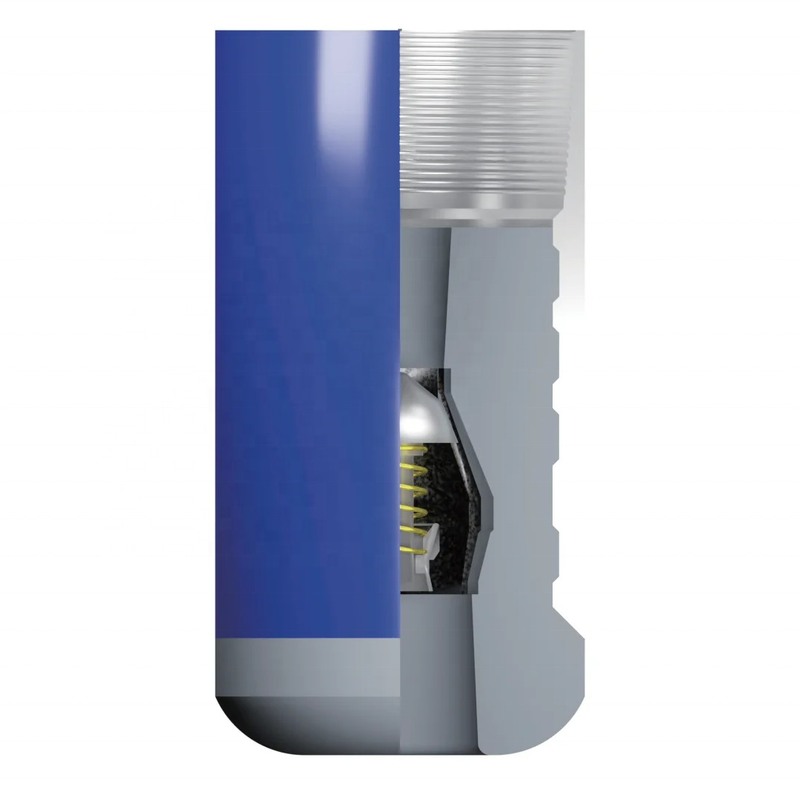

ISO API N80 BTC/LTC Squagging Cementing Float Shoe with Single or Double Valve

Float equipment serves as the backbone of casing equipment used during primary cementing operations. Float equipment guides the casing to total depth and prevents contaminated mud from entering the casing. It also provides a landing point for casing wiper plugs, reinforces the lower end of the casing string, and ensures precise cement slurry displacement.

Specifications

Name	Size (in)	Bore O.D. (in)	Bore I.D. (in)	Min Bore Parameter (in)	Thread Type	lb(in²)
Float Collar	5 1/2"	6"	4 3/4"	2"	5 1/2" LCSG	4351
	7"	7 5/8"	6 1/4"	2 3/8"	7" LCSG	3626
	9 5/8"	10 5/8"	8 5/8"	2 3/8"	9 5/8" LCSG	3626
	13 3/8"	14 3/8"	12 3/8"	2 3/8"	13 3/8" LCSG	3626
Float Shoe	5 1/2"	6"	4 3/4"	2"	5 1/2" LCSG	4351
	7"	7 5/8"	6 1/4"	2 3/8"	7" LCSG	3626
	9 5/8"	10 5/8"	8 5/8"	2 3/8"	9 5/8" LCSG	3626
	13 3/8"	14 3/8"	12 3/8"	2 3/8"	13 3/8" LCSG	3626

Company Profile

Our Factory

Device Image

Exhibition

Certifications

Product Packaging

Frequently Asked Questions

Q1: When can I get the price?

A: We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please tell us in your email so that we will regard your inquiry as priority.

Q2: Could I have prices of your products?

A: Welcome. Please feel free to send us an email here. You will get our reply in 24 hours.

Q3: Can I get a lower price if I order large quantities?

A: Yes, cheaper prices are available for larger quantity orders.

Q4: Do you inspect the finished products?

A: Yes, each step of production and finished products will be inspected by our QC department before shipping.

Q5: What about the lead time for the mass production?

A: The lead time depends on the order quantity and the season when you place the order.
