API Self-Locking Cementing Float Shoe 10 KG for Well Drilling

API self-locking cementing float shoe

10 KG well drilling float shoe

cementing float equipment with warranty

Luogo di origine:

Jiangsu, Cina

Marca:

SWS

contattici

Richieda una citazione

API Self-Locking Cementing Float Shoe 10 KG for Well Drilling

Dettagli del prodotto

Peso:

10 kg

Componenti principali:

Valvola

Tipo di valvola:

Valvola singola e doppia

Tipo di macchina:

Strumento di perforazione

Tipo di elaborazione:

Forgiatura

Misurare:

5 1/2 ", 7", 9 5/8 ", 13 3/8"

Nod od:

6 ", 7 5/8", 10 5/8 ", 14 3/8"

Abolo ID:

4 3/4 ", 6 1/4", 8 5/8 ", 12 3/8"

Min noia:

2 ", 2 3/8"

Tipo di filo:

5 1/2 "LCSG, 7" LCSG, 9 5/8 "LCSG, 13 3/8" LCSG

Valutazione della pressione:

4351, 3626 lb/in2

Prodotti relativi

API Standard 2-3/8" Aluminum Alloy Float Shoe for Cementing

Ottenga il migliore prezzo

API Standard Float Shoes 5-20 Inch for Oilfield Drilling Equipment

Ottenga il migliore prezzo

API Standard Float Collar 5 1/2"-9 5/8" for Oilfield Drilling 15000psi

Ottenga il migliore prezzo

API Standard Float Shoes 5-20in for Oilfield Drilling Cementing

Ottenga il migliore prezzo

contattici

86-519-83553967

Leo@service-js.com

86-519-83553967

Contatto ora

Descrizione di prodotto

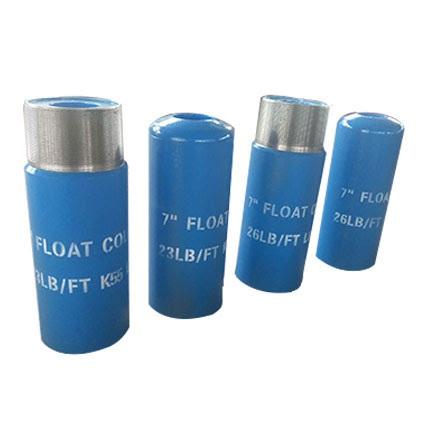

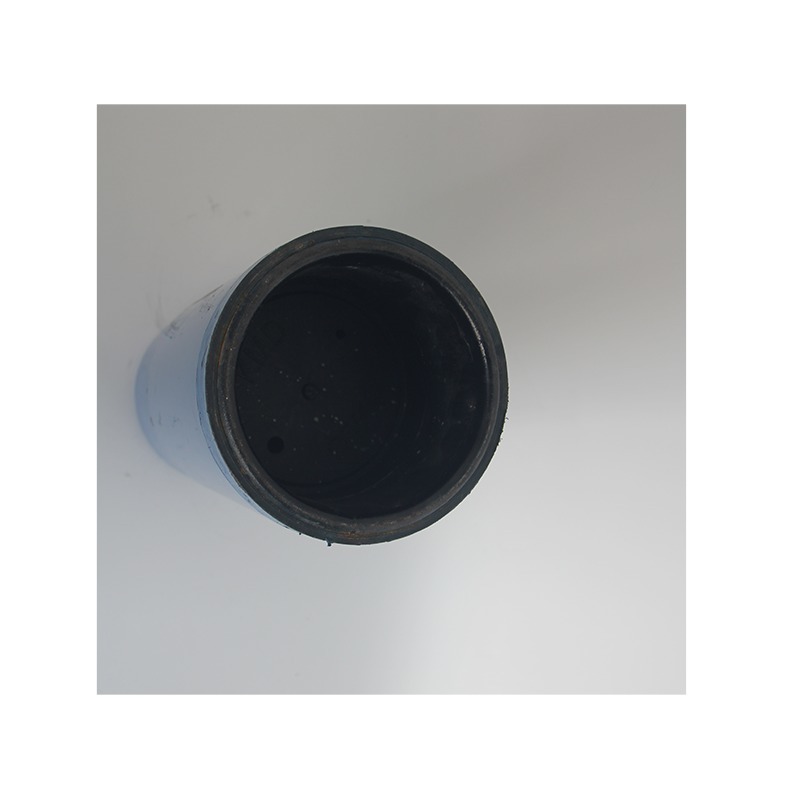

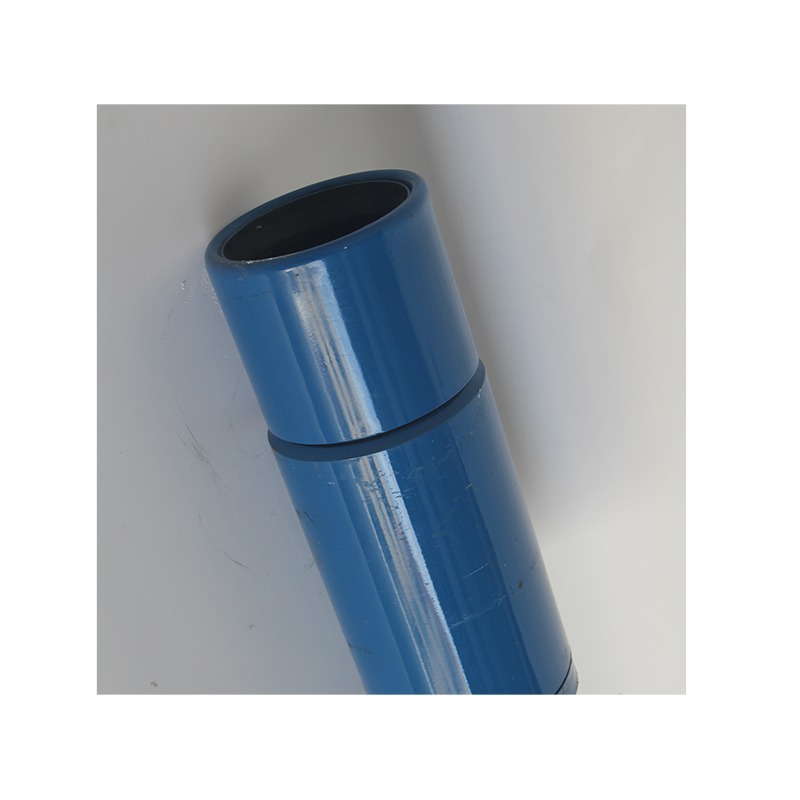

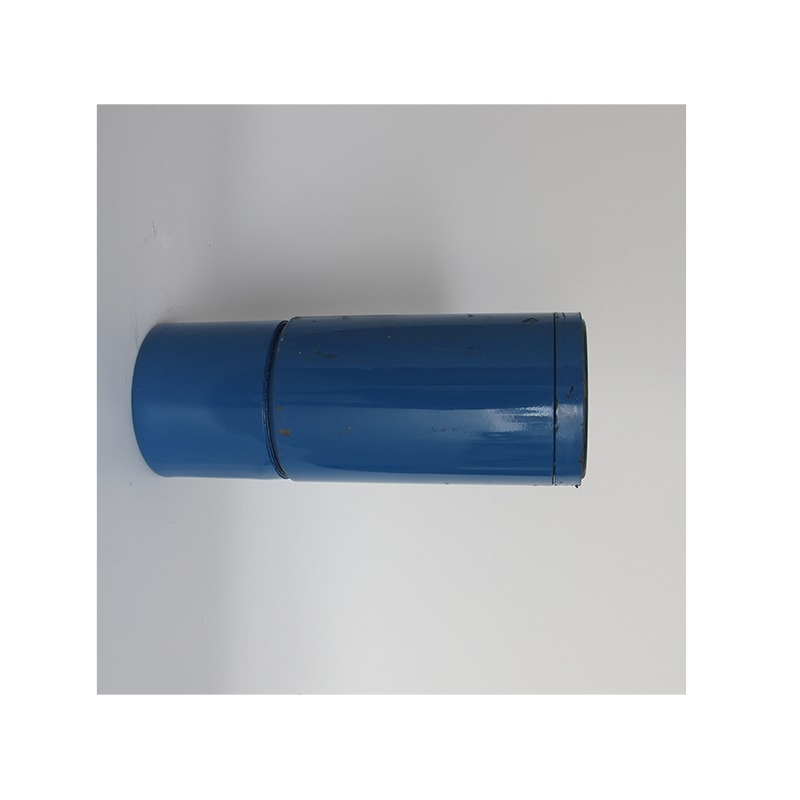

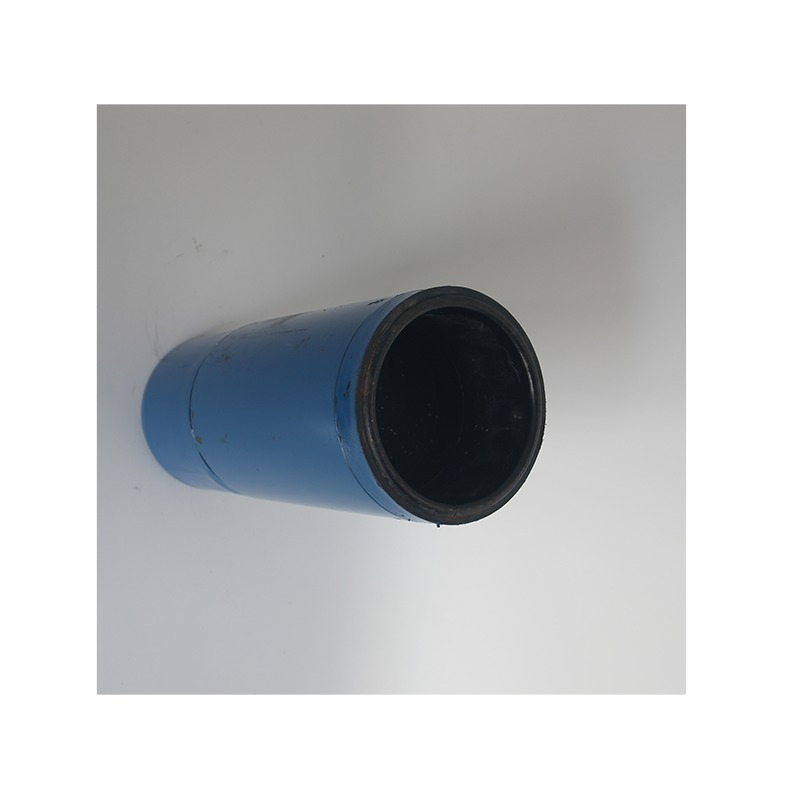

Self-Locking Cementing Float Shoe

Float equipment serves as the backbone of casing equipment used during primary cementing operations. Float equipment guides the casing to total depth and prevents contaminated mud from entering the casing. Also, it provides a landing point for casing wiper plugs, reinforces the lower end of the casing string, and ensures great accuracy of cement slurry displacement.

Specifications

Name	Size(in)	Bore O.D.(in)	Bore I.D.(in)	Min Bore Parameter(in)	Thread Type	lb(in2)
Float Collar	5 1/2"	6"	4 3/4"	2"	5 1/2" LCSG	4351
	7"	7 5/8"	6 1/4"	2 3/8"	7" LCSG	3626
	9 5/8"	10 5/8"	8 5/8"	2 3/8"	9 5/8" LCSG	3626
	13 3/8"	14 3/8"	12 3/8"	2 3/8"	13 3/8" LCSG	3626
Float Shoe	5 1/2"	6"	4 3/4"	2"	5 1/2" LCSG	4351
	7"	7 5/8"	6 1/4"	2 3/8"	7" LCSG	3626
	9 5/8"	10 5/8"	8 5/8"	2 3/8"	9 5/8" LCSG	3626
	13 3/8"	14 3/8"	12 3/8"	2 3/8"	13 3/8" LCSG	3626

Company Profile

Our Factory

Device Image

Exhibition

Certifications

Product Packaging

Frequently Asked Questions

Q1: When can I get the price?

We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please tell us in your email so that we will regard your inquiry priority.

Q2: Could I have prices of your products?

Welcome. Please feel free to send us an email here. You will get our reply in 24 hours.

Q3: Can I get a lower price if I order large quantities?

Yes, cheaper prices are available for larger quantity orders.

Q4: Do you inspect the finished products?

Yes, each step of production and finished products will be inspected by our QC department before shipping.

Q5: What about the lead time for the mass production?

Honestly, it depends on the order quantity and the season you place the order.
