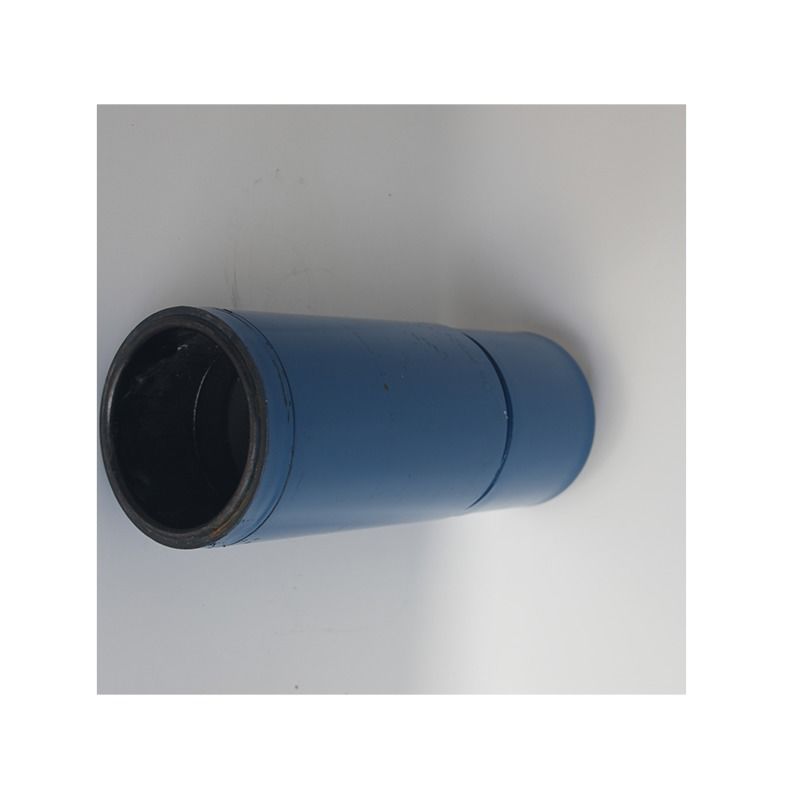

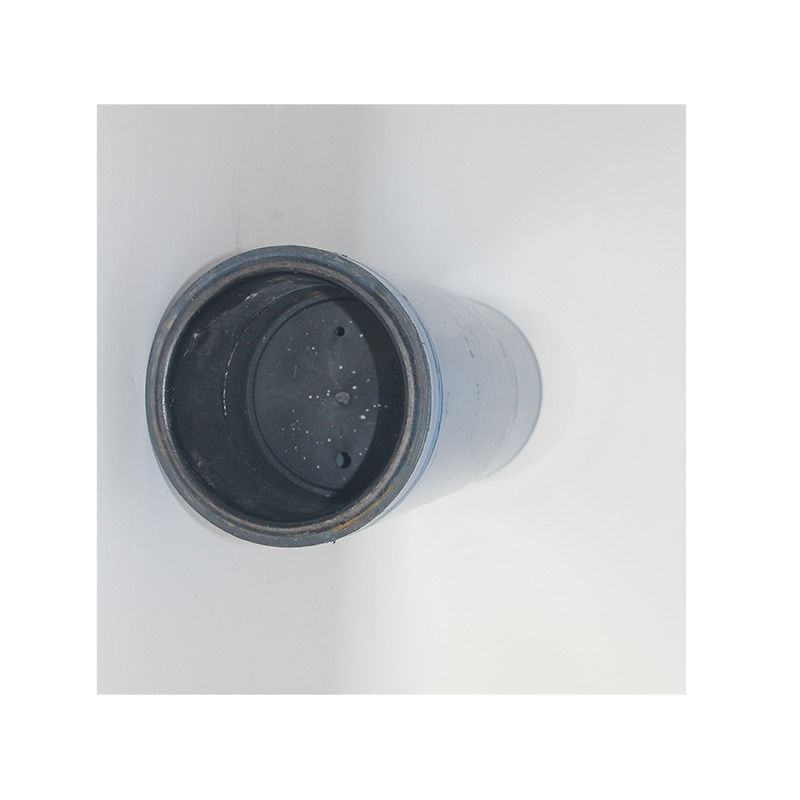

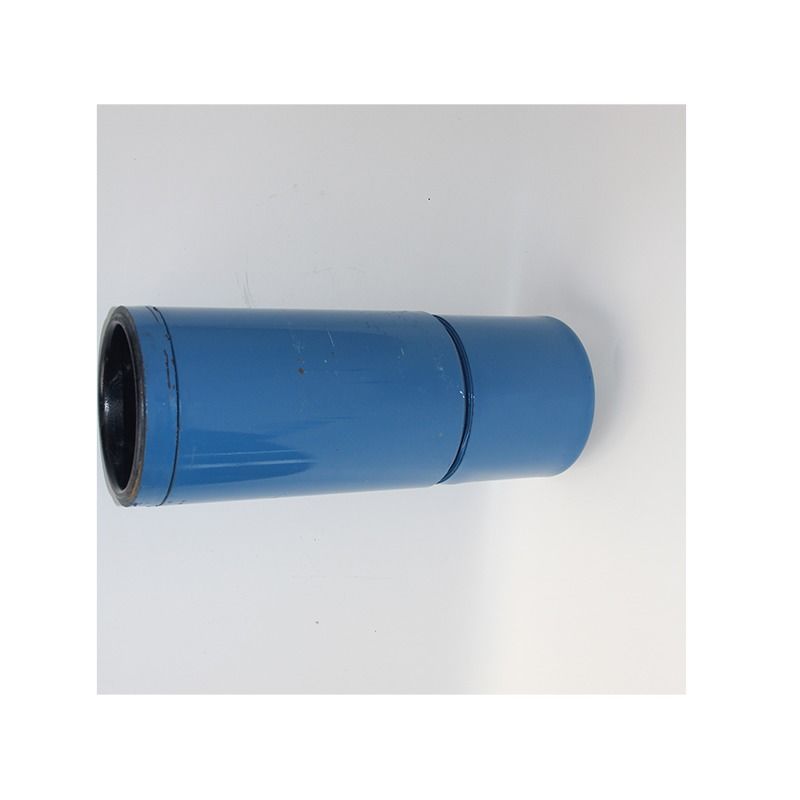

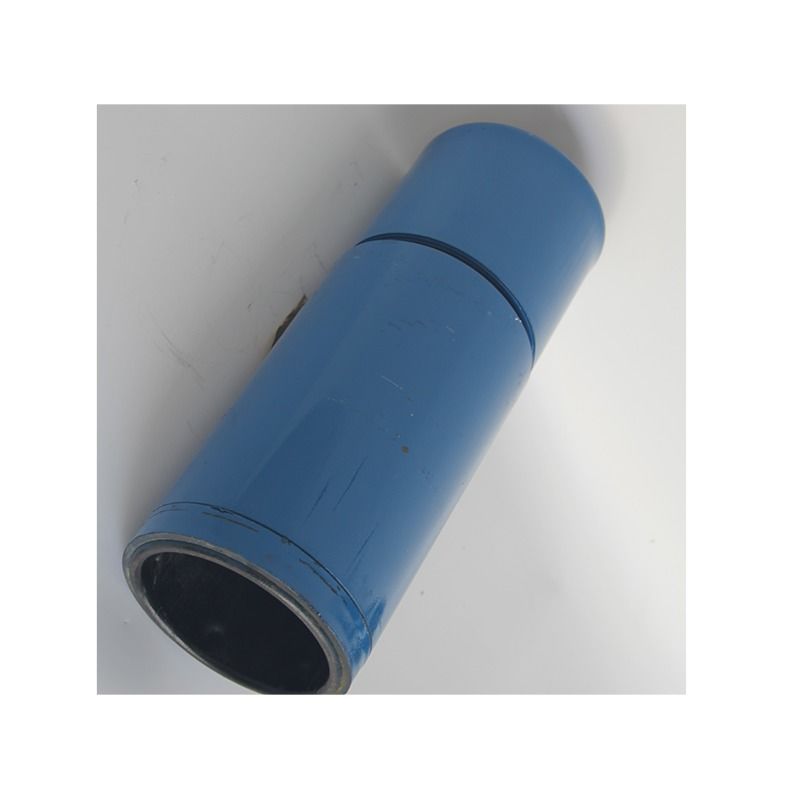

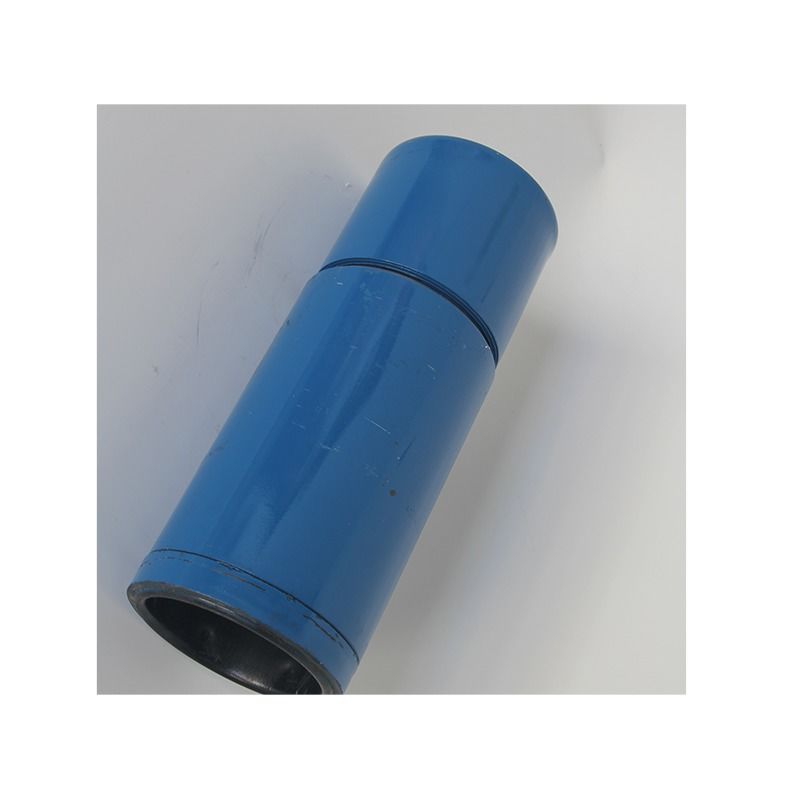

High Strength Cementing Float Shoe for Oil Gas Well Drilling

high strength cementing float shoe

oil gas well drilling float shoe

cementing float equipment with warranty

Luogo di origine:

Cina

contattici

Richieda una citazione

High Strength Cementing Float Shoe for Oil Gas Well Drilling

Dettagli del prodotto

Peso:

100 kg

Componenti principali:

Valvola

Tipo di valvola:

Valvola singola e doppia

Tipo di macchina:

Strumento di perforazione

Tipo di elaborazione:

Forgiatura

Dimensione del collare galleggiante:

5 1/2 ", 7", 9 5/8 ", 13 3/8"

Collar galleggiante a pasta OD:

6 ", 7 5/8", 10 5/8 ", 14 3/8"

Float Collar foro ID:

4 3/4 ", 6 1/4", 8 5/8 ", 12 3/8"

Float Collar Min Abod:

2 ", 2 3/8"

Tipo di filo con colletto float:

5 1/2 "LCSG, 7" LCSG, 9 5/8 "LCSG, 13 3/8" LCSG

Pressione del colletto galleggiante:

4351, 3626 lb (IN2)

Dimensione della scarpa galleggiante:

5 1/2 ", 7", 9 5/8 ", 13 3/8"

Scarpa galleggiata a piolo:

6 ", 7 5/8", 10 5/8 ", 14 3/8"

ID con foro di scarpa galleggiante:

4 3/4 ", 6 1/4", 8 5/8 ", 12 3/8"

Float shoe min abod:

2 ", 2 3/8"

Prodotti relativi

LTC 5-1/2 N80 Cementamento di proiettili per pozzi di petrolio o di gas

Ottenga il migliore prezzo

LTC 5-1/2 N80 Cementamento Reamer Float Shoe per pozzo di petrolio o pozzo di gas

Ottenga il migliore prezzo

LTC 5-1/2 N80 Cementamento di una scarpa di galleggiamento eccentrica per pozzo di petrolio o di gas

Ottenga il migliore prezzo

LTC 5-1/2 N80 Cementamento a getto di scarico

Ottenga il migliore prezzo

contattici

86-519-83553967

Leo@service-js.com

86-519-83553967

Contatto ora

Descrizione di prodotto

High Strength Precision Engineered Cementing Float Shoe for Oil & Gas Well

Product Attributes

Attribute	Value
Warranty	1 Year
Weight (KG)	100
Core Components	Valve
Valve type	single valve & double valve
Machine Type	Drilling Tool
Processing Type	Forging
Use	Well Drilling
Condition	New
Marketing Type	Ordinary Product
Warranty of core components	1 Year
Applicable Industries	Manufacturing Plant
Showroom Location	None

Product Description

Float equipment serves as the backbone of casing equipment used during primary cementing operations. Float equipment guides the casing to total depth and prevents contaminated mud from entering the casing. Also, it provides a landing point for casing wiper plugs, reinforces the lower end of the casing string, and ensures great accuracy of cement slurry displacement.

Specifications

Name	Size(in)	Bore O.D.(in)	Bore I.D.(in)	Min Bore Parameter(in)	Thread Type	lb(in2)
Float Collar	5 1/2"	6"	4 3/4"	2"	5 1/2" LCSG	4351
Float Collar	7"	7 5/8"	6 1/4"	2 3/8"	7" LCSG	3626
Float Collar	9 5/8"	10 5/8"	8 5/8"	2 3/8"	9 5/8" LCSG	3626
Float Collar	13 3/8"	14 3/8"	12 3/8"	2 3/8"	13 3/8" LCSG	3626
Float Shoe	5 1/2"	6"	4 3/4"	2"	5 1/2" LCSG	4351
Float Shoe	7"	7 5/8"	6 1/4"	2 3/8"	7" LCSG	3626
Float Shoe	9 5/8"	10 5/8"	8 5/8"	2 3/8"	9 5/8" LCSG	3626
Float Shoe	13 3/8"	14 3/8"	12 3/8"	2 3/8"	13 3/8" LCSG	3626

Company Profile

Our Factory

Device Image

Exhibition

Certifications

Product Packaging

Frequently Asked Questions

Q1: When can I get the price?

We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please tell us in your email so that we will regard your inquiry priority.

Q2: Could I have prices of your products?

Welcome. Please feel free to send us an email here. You will get our reply in 24 hours.

Q3: Can I get a lower price if I order large quantities?

Yes, cheaper prices with more bigger quantity orders.

Q4: Do you inspect the finished products?

Yes, each step of production and finished products will be came out inspection by QC department before shipping.

Q5: What about the lead time for the mass production?

Honestly, it depends on the order quantity and the season you place the order.
